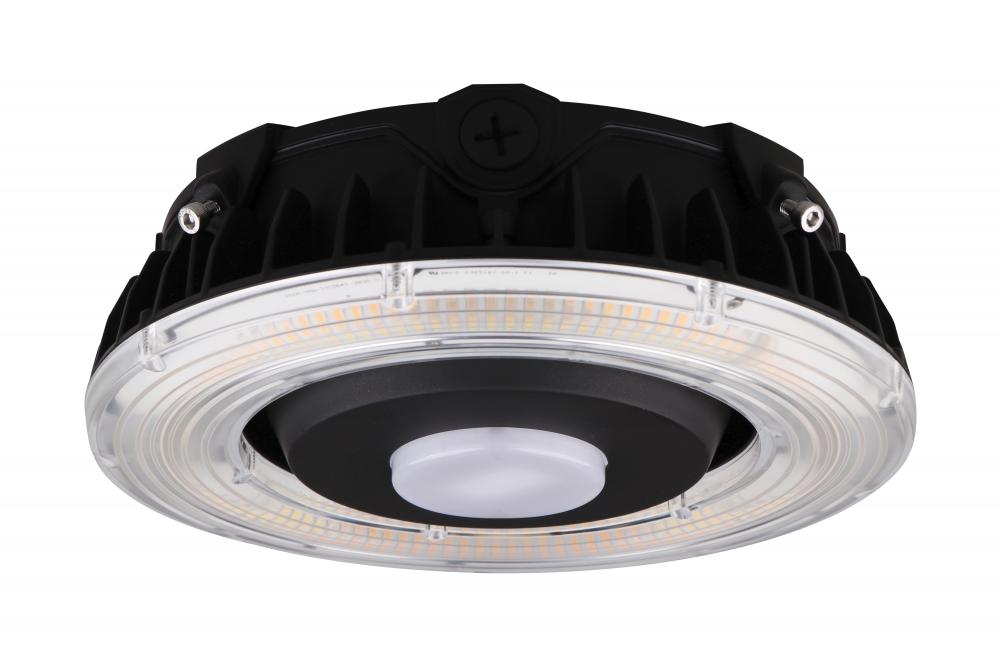

LED Canopy Fixture; 100 Watt; CCT Selectable; Bronze Finish; 100-277 Volt
Image may not reflect selected features
LED Canopy Fixture; 100 Watt; CCT Selectable; Bronze Finish; 100-277 Volt (A39N9)
LED Canopy Fixture; 100 Watt; CCT Selectable; Bronze Finish; 100-277 Volt
Product Specification
Item #
A39N9
Dimensions
Height: 3.13"
Width: 11.03"
Additional product details
Category
Specialty Items
Subcategory
Canopies
Finish
Bronze
Style
Traditional
Option
LED , Prop 65
Category
Surface Mount
Sub Category
Canopy Fixture
Style
Utility
Additional Info
UV stabilized powder coated finish
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm to Cool White
Diameter
11.03
Dimmable
Yes-Dimmable
Each Height
5.51
Each Length
12.8
Each Width
12.8
Lumens
11946L-13999L
Tariff Code
9405.11.6020
Warranty
5 Year Limited - Fixtures
Wire Length
11.81
Amps
1.000-0.361A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
150
B_U_G_Rating
B3-U3-G3
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
Connection
Hardwire
Country Of Origin
China
CRI
80+
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
Parking Garage Luminaires
Each Cube
0.5224
Each Quantity
1
Efficacy
119.46/129.73/139.99 LPW
FCC Compliant
Yes
Feature 1
Adjustable color temperature: 3000K, 4000K, 5000K
Feature 2
Adjustable lumen range: 11946~13999
Feature 3
DLC Premium certified
Feature 4
1-10V dimming
Feature 5
IP65 Rated
Feature 6
150 degree beam spread
Feature 7
150 degree beam spread
Finish Family
Bronze
IC Rated
Yes
Impact Rating (IK)
IK10
Incandescent Equivalent
300W
Indoor Outdoor
Outdoor
IP Rating
IP65
JA8 Compliant
No
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Long Description
The Nuvo 65-632 100-watt LED canopy light combines rugged construction and versatility. The selectable color temperatures, coupled with a variety of surface and pendant mount options, cover a multitude of applications. This versatile canopy fixture is easy
Material
Aluminum Alloy
Mounting Procedure
Ceiling
Operating Frequency
50-60Hz
Operating Temp
-30C (-22F) to +50C (+122F)
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
The Nuvo 100-watt LED canopy light combines rugged construction and versatility. The selectable color temperatures, coupled with a variety of surface and pendant mount options, cover a multitude of applications. This versatile canopy fixture is easy to ins
Safety Listing
cULus - Listed
SDS class
LED_Fixture
Short Description
100W LED CANOPY LIGHT
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
15%
Wattage Selectable
No
Weight Lb.
6.56
Wire Quantity
5
Wire Temp Rating
105C (221F)
