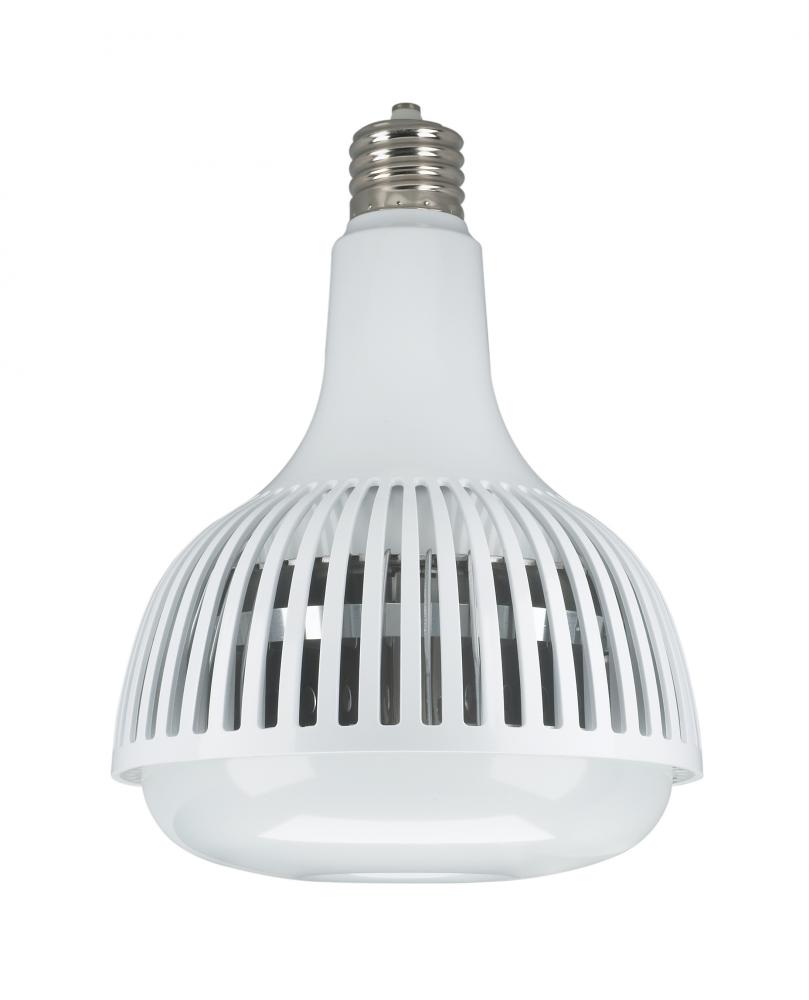

80 Watt - LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass; 120-277 Volt (LNL3E)
80 Watt - LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass; 120-277 Volt
Product Specification
Item #
LNL3E
Dimensions
Width: 7.48"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Finish
White
Category
LED
Sub-Category
HID Replacements
Volts
120V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
5000K
Bulb Shape
HB60
Diameter
7.48
EA Length
7.48
Harmonized Codes
8539.52.0091
Length
10.12
Lumens
10000L
Shap Carton Width
7.48
Ship Carton Height
10.43
Ship Weight
2.16
Warranty
5 Year Limited - Hi-Pro
Weight
1.72
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
115
Bulb ANSI Base
EX39
Bulb Base
Mogul Extended
Bulb Finish
Translucent White
Burning Position
Universal
Candle Power
3000
Carton Cubic Feet
0.3377
Cartons Per Unit
1
CBCP
3000
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Natural Light
Country Of Origin
China
CRI
80+
DLC Approved
No
Efficacy
125.00 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
MOL: 10.12 inches, MOD: 7.48 inches
Feature 2
Superior 80 CRI light quality, 10000 lumens, 5000K natural light, with a 115 degree beam spread
Feature 3
Rated for enclosed fixtures
Feature 4
Damp location rated
Feature 5
80 watt LED replaces 250 watt HID
Feature 6
Translucent white lens with white housing
Feature 7
5 Year Limited Warranty, based on average use of Hi-Pro
HID Equivalent
250W
Housing Color
White
Incandescent Equivalent
400W
Installation Notes
Not for use in vapor tight fixtures.
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Lens
Yes
Lens Finish
Translucent White
Location Rating
Damp
Long Description
Satco's S13113 80 watt 20000 lumen Hi-Bay LED HID Type B ballast bypass replacement lamp with built in surge protection is perfect for industrial and commercial applications. The translucent white bulb features a mogul extended base and a beam spread o
Material
Plastic
Minimum Compartment Size
Length: 13.5 in. Width: 13.5 in. Height: 12 in.
Operating Frequency
50-60Hz
Operating Temp
-40C (-40F) to +60C (+140F)
Pack Type
Box
Power Factor
0.98/0.92
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
Satco's 80 watt 20000 lumen Hi-Bay LED HID Type B ballast bypass replacement lamp with built in surge protection is perfect for industrial and commercial applications. The translucent white bulb features a mogul extended base and a beam spread of 115 d
SDS class
LED_Lamp
Short Description
80W/LED/HID-HB/5K/120-277V
Style
Contemporary
Surge Protection
Built-in surge protection - 6KV
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Wattage Selectable
No
Watts
80W
Finish Family
Additional options that would change other selections
