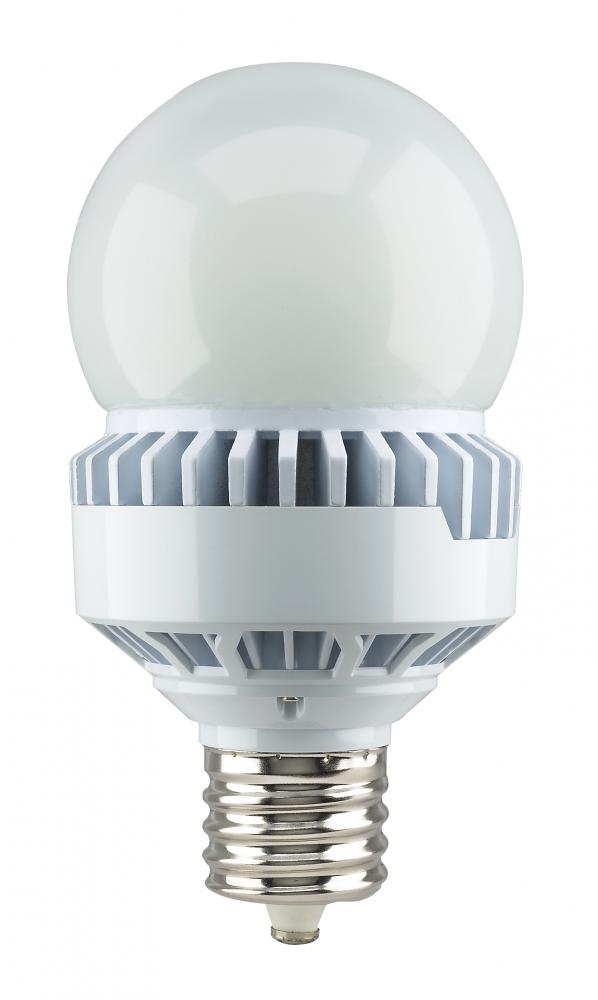

35 Watt LED A25 Hi-Pro HID Replacement; 4000K; Mogul extended base; Type B Ballast Bypass; 120-277 (LNL39)
35 Watt LED A25 Hi-Pro HID Replacement; 4000K; Mogul extended base; Type B Ballast Bypass; 120-277 Volt
Product Specification
Item #
LNL39
Dimensions
Width: 3.75"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Finish
White
Category
LED
Sub-Category
HID Replacements
Volts
120V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
4000K
Bulb Shape
A25
Diameter
3.75
EA Length
4.96
Harmonized Codes
8539.52.0010
Length
7.25
Lumens
4725L
Shap Carton Width
4.96
Ship Carton Height
8.789999999999999
Ship Weight
1.56
Warranty
5 Year Limited - Hi-Pro
Weight
1.56
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
280
Bulb ANSI Base
EX39
Bulb Base
Mogul Extended
Bulb Finish
Frost
Burning Position
Universal
Carton Cubic Feet
0.1251
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Cool White
Country Of Origin
China
CRI
80+
DLC Approved
No
Efficacy
135.00 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
MOL: 7.25 inches, MOD: 3.75 inches
Feature 2
Superior 80 CRI light quality, 4725 lumens, 4000K cool white light, with a 280 degree beam spread
Feature 3
Rated for enclosed fixtures
Feature 4
Damp location rated
Feature 5
35 watt LED replaces 300W incandescent
Feature 6
Frost finished bulb with white plastic housing
Feature 7
5 year limited warranty
HID Equivalent
150W
Housing Color
White
Incandescent Equivalent
300W
Installation Notes
Not for use in vapor tight fixtures.
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Lens
Yes
Lens Finish
Frost
Lens Material
Plastic (PS)
Location Rating
Damp
Long Description
Satco's S13109 35 watt A25 Hi-Pro 4725 lumen LED Type B ballast bypass HID replacement lamp is suitable for damp locations and enclosed fixtures. The frost bulb features a mogul extended base and a 280 degree beam spread. With a temperature of 4000 kel
Material
Plastic
Minimum Compartment Size
Diameter: 6 in. Height: 8.5 in.
Operating Frequency
50/60Hz
Operating Temp
-25C (-13F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
Satco's 35 watt A25 Hi-Pro 4725 lumen LED Type B ballast bypass HID replacement lamp is suitable for damp locations and enclosed fixtures. The frost bulb features a mogul extended base and a 280 degree beam spread. With a temperature of 4000 kelvins, t
SDS class
LED_Lamp
Short Description
35WA25/LED/40K/100-277V/EX39
Style
Contemporary
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Wattage Selectable
No
Watts
35W
Finish Family
