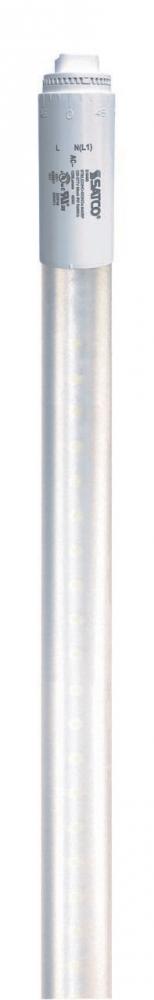

24 Watt T8 LED; 6500K; 3100 Lumens; 120-277 Volt; Type B; Single Ended; Ballast Bypass (LNM19)
24 Watt T8 LED; 6500K; 3100 Lumens; 120-277 Volt; Type B; Single Ended; Ballast Bypass
Product Specification
Item #
LNM19
Dimensions
Width: 1.00"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Finish
White
Style
Traditional
Category
LED
Sub-Category
LED T8
Volts
120V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
6500K
Bulb Shape
T8
Diameter
1
EA Length
59.45
Harmonized Codes
8539.52.0051
Length
57.88
Lumens
3100L
Shap Carton Width
1
Ship Carton Height
1
Ship Weight
1.26
Warranty
5 Year Limited - T8 LED Bulbs - Ballast Bypass - Outdoor Sign
Weight
1.01
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
360
Bulb ANSI Base
R17d
Bulb Base
Recessed Double Contact HO/VHO
Bulb Finish
Frost
Burning Position
Universal
Carton Cubic Feet
0.0344
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Daylight
Country Of Origin
China
CRI
80+
DLC Approved
No
Efficacy
129.17 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
MOL: 57.88 inches, MOD: 1.00 inch
Feature 2
Superior 83 CRI light quality, 3100 lumens, 6500K daylight, with a 360 degree beam spread
Feature 3
Rated for enclosed fixtures
Feature 4
Damp location rated
Feature 5
24 watt LED replaces 75 watt fluorescent
Feature 6
Frost finished linear plastic bulb
Feature 7
LED energy efficient fixture
Feature 8
5 year limited warranty
Flourescent Equivalent
75W
Incandescent Equivalent
100W
Installation Notes
Not for use in vapor tight fixtures. No ballast or external driver required; Direct wire 120-277V line voltage; Single ended wiring
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Single Ended
Lamp Filament
LED
Lens
Yes
Lens Finish
Frost
Location Rating
Damp
Long Description
Satco's S16407 24 watt T8 LED Type B single ended ballast bypass linear lamps with powerful lumen output and long lasting superior light created is designed for use in commercial settings and the illumination of signs. The frost bulb features a recesse
Material
Plastic
Nominal Length
60
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-30C (-22F) to +45C (+113F)
Order In Multiples Of
10
Pack Type
Egg Crate
Power Factor
0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
Satco's 24 watt T8 LED Type B single ended ballast bypass linear lamps with powerful lumen output and long lasting superior light created is designed for use in commercial settings and the illumination of signs. The frost bulb features a recessed doubl
SDS class
LED_Lamp
Short Description
24T8/LED/HO-SIGN/60-865/BP
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Wattage Selectable
No
Watts
24W
Finish Family
