Image may not reflect selected features

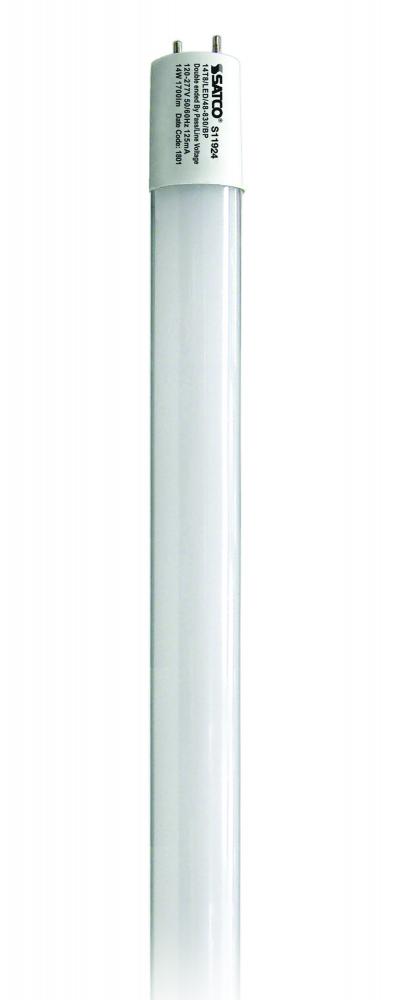

14 Watt T8 LED; Medium bi-pin base; 6500K; 50000 Average rated hours; 1800 Lumens; Type B; Ballast (LNK1V)
14 Watt T8 LED; Medium bi-pin base; 6500K; 50000 Average rated hours; 1800 Lumens; Type B; Ballast Bypass; Double Ended Wiring
Product Specification
Item #
LNK1V
Dimensions
Width: 1.00"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Finish
White
Category
LED
Sub-Category
LED T8
Volts
120V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
6500K
Bulb Shape
T8
Diameter
1
EA Length
48
Harmonized Codes
8539.50.0051
Length
48
Lumens
1800L
Shap Carton Width
1
Ship Carton Height
1
Ship Weight
0.5
Warranty
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Additional Info
Built-in shock resistant circuit
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Beam Spread
210
Bulb ANSI Base
G13
Bulb Base
Medium Bi Pin
Bulb Finish
Frost
Burning Position
Universal
Carton Cubic Feet
0.0278
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Daylight
Country Of Origin
China
CRI
80+
DLC Approved
No
Efficacy
128.57 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
Daylight
Feature 2
Damp rated for indoor use
Feature 3
Enclosed Rated Lamp
Feature 4
L:48.00 D:1.00
Feature 5
T8, Frosted Finish
Flourescent Equivalent
25W-32W
Incandescent Equivalent
100W
Installation Notes
Not for use in vapor tight fixtures.
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Double Ended
Lamp Filament
LED
Lens
Yes
Lens Finish
Frost
Lens Material
Glass
Location Rating
Damp
Long Description
Satco's S11924 14-watt LED, T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 210-degree beam spread and high lumens count for superior illumination. This frosted bulb is versatile and
Material
Glass
Nominal Length
48
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
25
Pack Type
Sleeve
Power Factor
0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
Satco's 14-watt LED, T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 210-degree beam spread and high lumens count for superior illumination. This frosted bulb is versatile and delive
SDS class
LED_Lamp
Short Description
14T8/LED/48-865/BP 120-277V
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Tube Guard Use
Yes
Wattage Selectable
No
Watts
14W
Finish Family
Additional options that would change other selections
Call for Price
$
13
00
/
/ 1
($13.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer may be Out Of Stock.
- This Item has been Discontinued. Please call before purchasing
