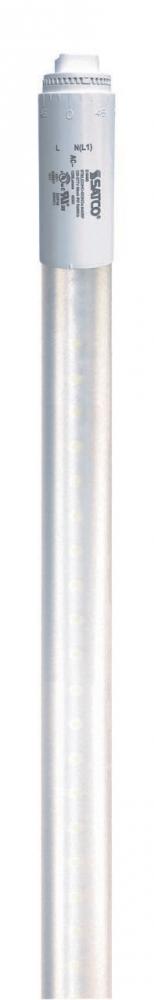

12 Watt T8 LED; 4000K; 1500 Lumens; 120-277 Volt; Type B; Single Ended; Ballast Bypass (LNM14)
12 Watt T8 LED; 4000K; 1500 Lumens; 120-277 Volt; Type B; Single Ended; Ballast Bypass
Product Specification
Item #
LNM14
Dimensions
Width: 1.00"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Finish
White
Style
Traditional
Category
LED
Sub-Category
LED T8
Volts
120V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
4000K
Bulb Shape
T8
Diameter
1
EA Length
35.43
Harmonized Codes
8539.52.0051
Length
33.88
Lumens
1500L
Shap Carton Width
1
Ship Carton Height
1
Ship Weight
0.66
Warranty
5 Year Limited - T8 LED Bulbs - Ballast Bypass - Outdoor Sign
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
360
Bulb ANSI Base
R17d
Bulb Base
Recessed Double Contact HO/VHO
Bulb Finish
Frost
Burning Position
Universal
Carton Cubic Feet
0.0205
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Cool White
Country Of Origin
China
CRI
80+
DLC Approved
No
Efficacy
125.00 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
MOL: 33.88 inches, MOD: 1.00 inch
Feature 2
Superior 83 CRI light quality, 1500 lumens, 4000K cool white light, with a 360 degree beam spread
Feature 3
Rated for enclosed fixtures
Feature 4
Damp location rated
Feature 5
12 watt LED replaces 50 watt fluorescent
Feature 6
Frost finished linear plastic bulb
Feature 7
LED energy efficient fixture
Feature 8
5 year limited warranty
Flourescent Equivalent
45W
Incandescent Equivalent
60W
Installation Notes
Not for use in vapor tight fixtures. No ballast or external driver required; Direct wire 120-277V line voltage; Single ended wiring
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Single Ended
Lamp Filament
LED
Lens
Yes
Lens Finish
Frost
Location Rating
Damp
Long Description
Satco's S16402 12 watt T8 LED Type B single ended ballast bypass linear lamps is perfect for general lighting in large commercial spaces are well suited for high ceiling applications. The frost bulb features a recessed double contact base and a 360 deg
Material
Plastic
Nominal Length
36
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-30C (-22F) to +45C (+113F)
Order In Multiples Of
10
Pack Type
Egg Crate
Power Factor
0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
Satco's 12 watt T8 LED Type B single ended ballast bypass linear lamps is perfect for general lighting in large commercial spaces are well suited for high ceiling applications. The frost bulb features a recessed double contact base and a 360 degree bea
SDS class
LED_Lamp
Short Description
12T8/LED/HO-SIGN/36-840/BP
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Wattage Selectable
No
Watts
12W
Finish Family
