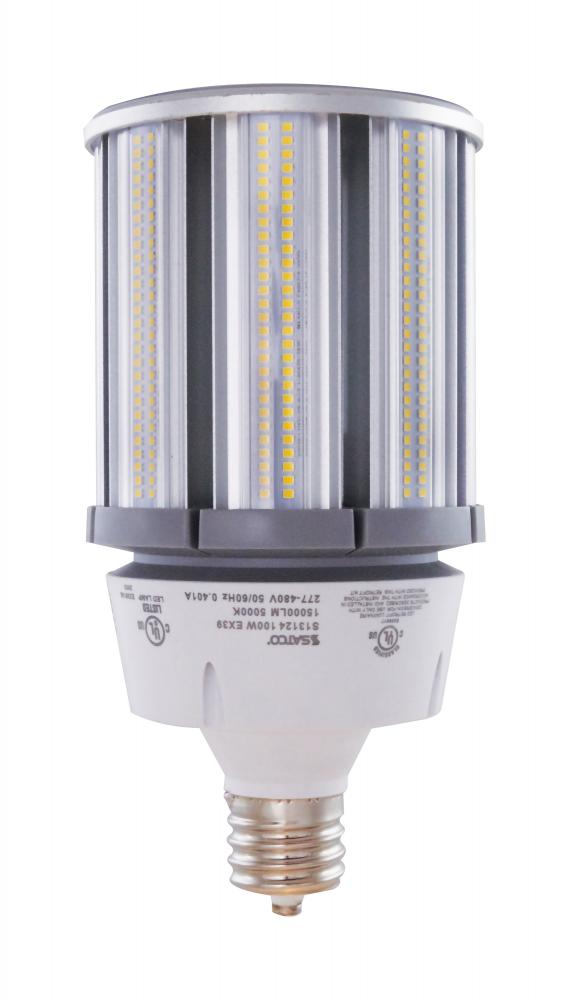

100 Watt LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass;277-480 Volt (LNLZU)
100 Watt LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass;277-480 Volt
Product Specification
Item #
LNLZU
Dimensions
Width: 5.20"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Style
Traditional
Category
LED
Sub-Category
HID Replacements
Volts
277V-480V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
5000K
Bulb Shape
Corncob
Diameter
5.2
EA Length
5.5
Harmonized Codes
8539.52.0091
Length
10.2
Lumens
15000L
Shap Carton Width
5.5
Ship Carton Height
11.99
Ship Weight
3.92
Warranty
5 Year Limited - Hi-Pro
Weight
3.3
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
360
Bulb ANSI Base
EX39
Bulb Base
Mogul Extended
Bulb Finish
Clear
Burning Position
Universal
Candle Power
1418
Carton Cubic Feet
0.2099
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Natural Light
Country Of Origin
China
CRI
80+
DLC Approved
No
Efficacy
150.00 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
Natural light
Feature 2
LED
Feature 3
Damp, Enclosed Rated Replacement Lamp
Feature 4
L:10.20 D:5.20
Feature 5
Type B Ballast Bypass
HID Equivalent
400W
Housing Color
White/Grey
Incandescent Equivalent
400W
Installation Notes
Not for use in vapor tight fixtures.
IP Rating
IP64
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Lens
Yes
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Location Rating
Damp
Long Description
Satco's S13124 100-watt LED HID replacement bulb offers natural light and a 360 degree beam spread. The lamp features built-in surge protection and a Mogul extended base providing superior outdoor illumination. This lamp has a compact design and delive
Material
Aluminum / Polycarbonate (PC)
Minimum Compartment Size
Length: 9.8 in. Width: 9.8 in. Depth: 11.5 in.
NSF Approved
No
Operating Frequency
50/60Hz
Operating Temp
-30C (-22F) to +45C (+113F)
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
Satco's 100-watt LED HID replacement bulb offers natural light and a 360 degree beam spread. The lamp features built-in surge protection and a Mogul extended base providing superior outdoor illumination. This lamp has a compact design and delivers 50,0
SDS class
LED_Lamp
Short Description
100W/LED/HID/5K/277-480V/EX39
Style
Utility
Surge Protection
Built-in surge protection - 4KV
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Wattage Selectable
No
Watts
100W
Finish Family
Additional options that would change other selections
Call for Price
$
215
00
/
/ 1
($215.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer may be Out Of Stock.
- This Item has been Discontinued. Please call before purchasing
